For corrugated pipes from 4,8 to 36 mm

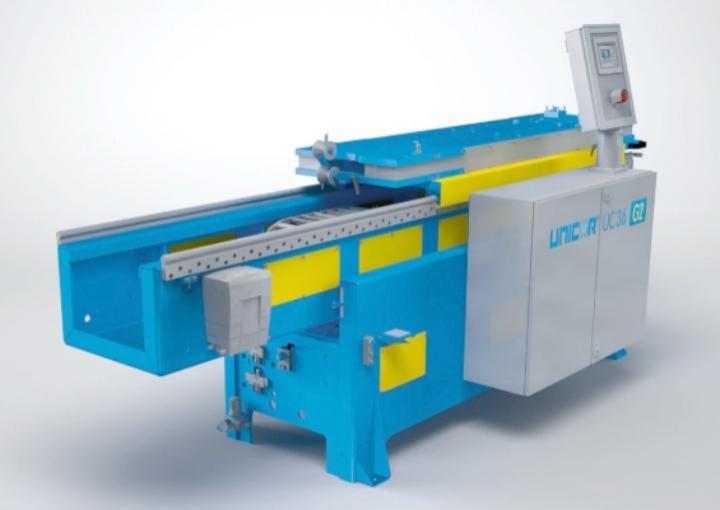

On the UC 36 corrugators, flexible single wall corrugated pipes, made of nearly all thermoplastic materials, can be produced. The machine is available in three different lengths and can optionally be equipped with vacuum.

Features UC 36 PE Single Wall Pipe for cable conduit :

• Closed construction corrugator
• Mould blocks made of steel
• Precise lateral and height adjustment of corrugator
• Suitable for the use of single and duo mould blocks
• Automatic central lubrication system
• Switch board mounted at corrugator
• PLC control unit
• Maintanence free servo motor
• Integrated operator touch screen panel
• Interface for syncronization with extruder
• Reverse/forward turn of mould block by inching mode and/or ratchet unit
• Visualisation for water pressure and temperature by analogue indicator
• Visualisation of mould block temperature on main display
• Optimized water cooling system for indirect forming block cooling in middle, curve and back channel section (cooling left, right, bottom and top of mould blocks)
• Basic version with 50 pairs of mould blocks
• Extension moduls for 65 or 80 pairs are available
• Automatic mould block clearance adjustment
• Return channel material monitoring

Applications :

• Cable protection for : TV, telephone, glass fiber, electricity, IT and computer
• Automotive and airplane industry, machine and ship building
• Healthcare
• Vacuum cleaners
• Washing machines, dishwashers

Materials:

• Polyolefines
• Polyamides
• PVC
• PVDF
• EVA
• TFA
• TPE
