- -open design
- -process controlled direct water cooling of mould blocks
- -high outputs
- -multi zone vacuum technology

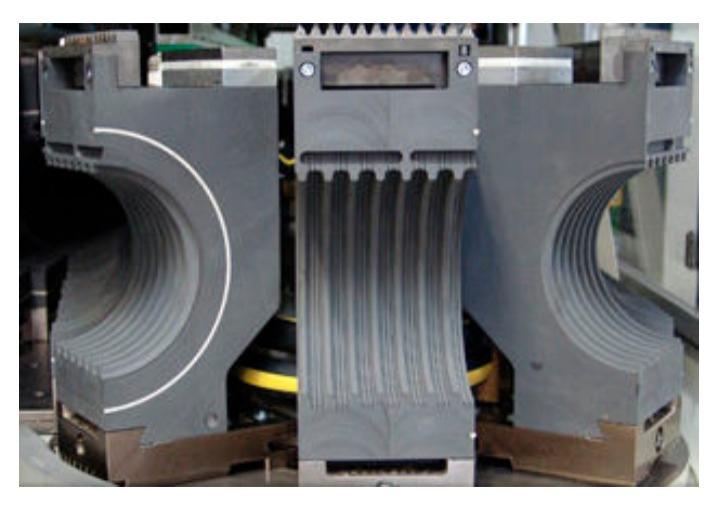

- -mould blocks made of special aluminium alloy
- -hard coated mould blocks
- -suitable for the use of single and duo mould blocks
- -precise lateral and height adjustment of corrugator
- -central lubrication with monitoring system
- -battery buffered push off spindle system
- -PLC control system
- -touch screen technology
- -graphic visualisation of process data
- -electrical control for synchronisation with extruder
- -maintenance-free servo motors
- -telediagnostic service via internet available
Field of application
- -Cable protection for: TV, telephone, glass fiber, electricity, IT and computer
- -Protection pipes for district heating systems
- -Technical pipes
- -Sewer pipes
- -Drainage pipes for fields, streets, squares, buildings and any other corrugated products
Technical data
parameter | UC 315/35 iV | UC 315/48 iV |
max. pipe diameter (outer diameter) in mm | 315 | 315 |
min. pipe diameter (inner diameter) in mm | 32 | 32 |
connection power in kw | 20 | 20 |
amount of mould blocks | 36 | 48 |
mould block chain in total (mm) | 4.617 | 6.333 |
mould blocks in middle channel (mm) | 1.174 | 2.035 |
max. PVC output (KG) | 600 | 820 |
max. HDPE output (kg/h) | 420 | 650 |
max. speed (m/min) | 9 | 9 |
length (mm) | 3.675 | 5.215 |
width (mm) | 1.884 | 1.884 |
height (mm) | 2.020 | 2.020 |
weight (kg) | 4.200 | 5.390 |
plastics
- -Polyolefines
- -Polyamides
- -PVC, PVDF, EVA, TFA, TPE
