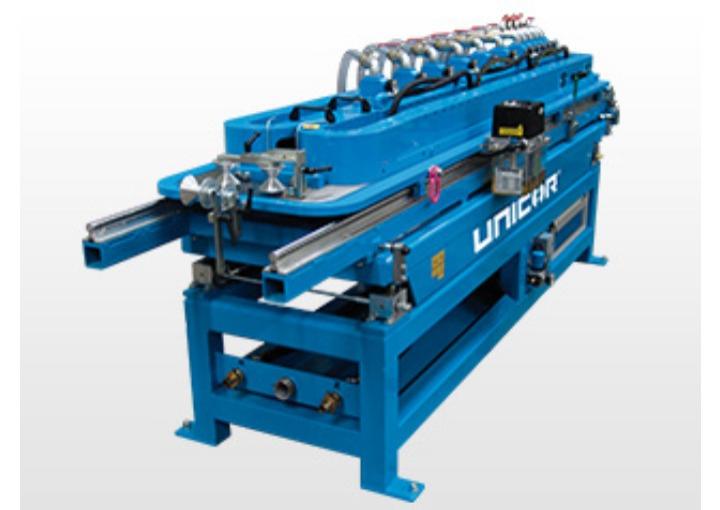

- -Closed design
- -Water cooling
- -High outputs
- -Mould blocks made of steel
- -Easy and quick mould block change
- -Suitable for the use of single, duo and triple mould blocks
- -Precise lateral and height adjustment of corrugator
- -Clearance adjustment
- -Patented automatic clearance adjustment available
- -Central lubrication with monitoring system
- -Multi zone vacuum technology available
- -Push off cylinder operated by air available
- -PLC control system
- -Touch screen technology
- -Electrical control for synchronisation with extruder
- -Maintenance-free servo motor
- -Telediagnostic service via internet available
Field of application
- -Protection pipes for TV, glassfiber, telephone, electricity, IT and computer, PEX, Alu-PEX, cable
- -Automotive industry
- -Airplane industry, machine and ship building
- -Healthcare
- -Vacuum cleaners
- -Washing machines
- -Dishwashers
Technical data
Parameter: | UC 58/40-90 (V) vario vacuum | UC 58/40-120 (V) vario vacuum |
max. pipe diameter (outer diameter) in mm | 58 | 58 |
min. pipe diameter (inner diameter) in mm | 8 | 8 |
connection power in kw | 6.5 | 6.5 |
amount of mould blocks | 40-90 | 40-120 |
mould block chain in total (mm) | 2.260-5.086 | 2.260-6.782 |
mould blocks in middle channel (mm) | 524-1.936 | 524-2.785 |
max. PVC output (KG) | 70-210 | 70-310 |
max. HDPE output (kg/h) | 50-150 | 50-240 |
max. speed (m/min) | 43 | 43 |
length (mm) | 3.036 | 3.996 |
width (mm) | 824 | 985 |
height (mm) | 1.241 | 1.350 |
weight (kg) | 1.800 | 2.050 |
plastics
- -Polyolefines
- -Polyamides
- -PVC
- -PVDF
- -EVA
- -TFA
- -TPE
