- -closed design
- -water cooling
- -high outputs
- -mould blocks made of steel
- -easy and quick mould block change
- -precise lateral and height adjustment of corrugator
- -clearance adjustment
- -central lubrication with monitoring system
- -multi zone vacuum technology available
- -push off cylinder operated by air available
- -PLC control system
- -electrical control for synchronisation with extruder
- -maintenance-free servo motor
- -telediagnostic service via internet available

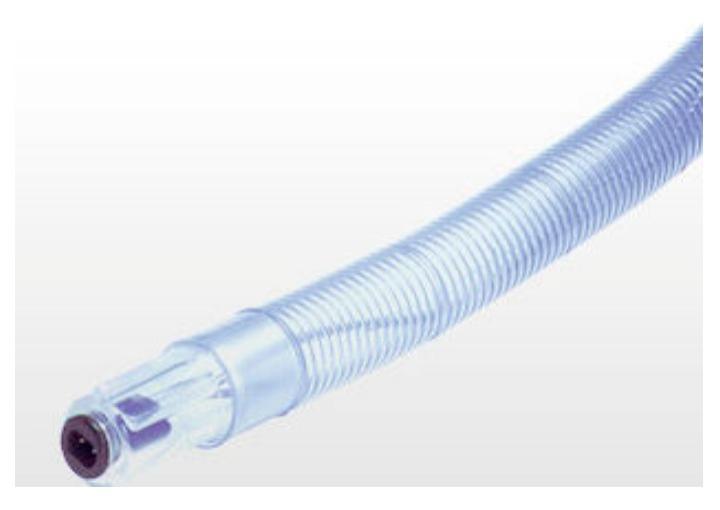

Field of application
- Protection pipes for TV, glassfiber, telephone, electricity, IT and computer
- Automotive industry
- Airplane industry, machine and ship building
- Healthcare

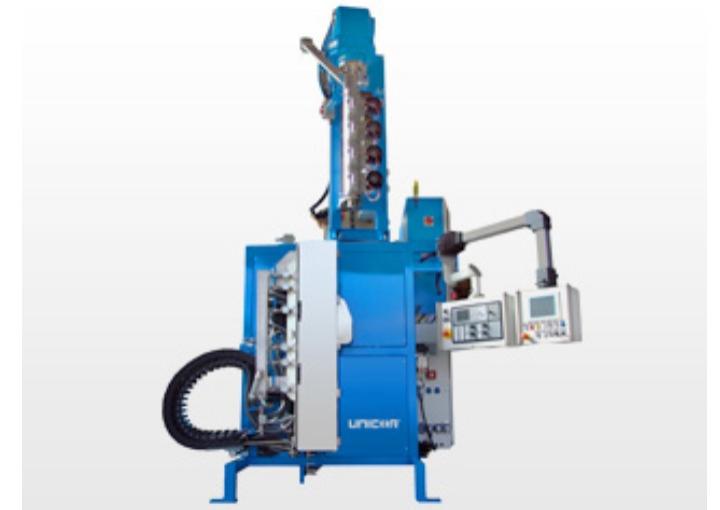

Technical data
parameter | UC 15/105 vertical V | UC 15/63 vertical V |
max. pipe diameter (outer diameter) in mm | 15 | 15 |
min. pipe diameter (inner diameter) in mm | 3.0 | 3.0 |
connection power in kw | 4.5 | 4.1 |
amount of mould blocks | 105 | 63 |
mould block chain in total (mm) | 2.967 | 1.780 |
mould blocks in middle channel (mm) | 1.176 | 585 |
max. PVC output (KG) | 50 | 30 |
max. HDPE output (kg/h) | 35 | 20 |
max. speed (m/min) | 40 | 26 |
length (mm) | 2.650 | 2.650 |
width (mm) | 1.720 | 1.720 |
height (mm) | 2.325 | 1.970 |
weight (kg) | 660 | 600 |
plastics
- -Polyolefines
- -Polyamides
- -PVC
- -PVDF
- -EVA
- -TFA
- -TPE
