- -open design
- -process controlled direct air cooling of mould blocks
- -maintenance free cooling system
- -working temperatur of moulds 20-80°C
- -precise temperatur adjustment of mould blocks
- -high outputs
- -adjustable multi zone vacuum system
- -vacuum control system
- -single profile evacuation
- -adjustable mould chain length
- -quick opening of center channel via spindles
- -corrugator with zoom technology
- weight optimized mould sizes

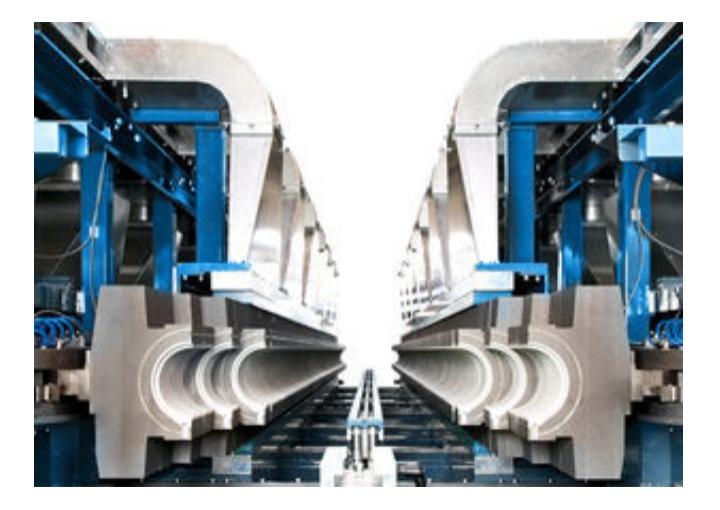

- short die lengths- -hard coated mould blocks
- -easy and quick mould block change
- -pre-adjusted clearance system
- -central lubrication with monitoring system
- -battery buffered push off system
- -B&R based PLC control system
- -touch screen technology
- -graphic visualisation of process data
- -electrical control for synchronisation with extruder
- -maintenance-free servo motors
- -telediagnostic service via internet available

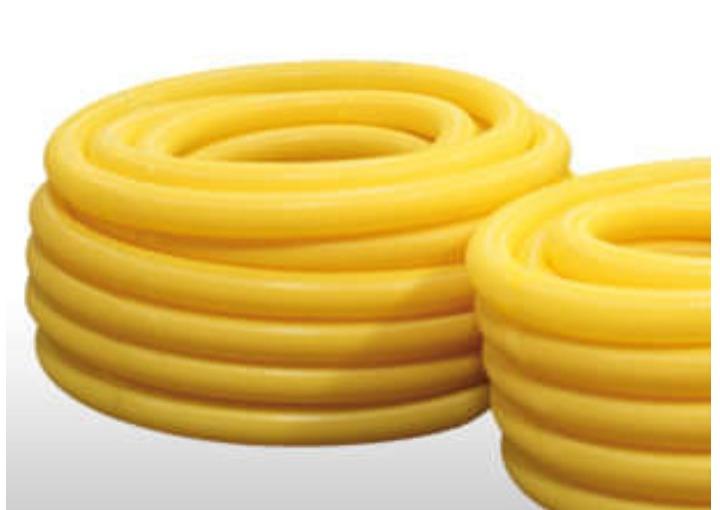

- -Drainage pipes for fields, streets, squares, buildings and any other corrugated products
- -Protection pipes for district heating systems
- -Technical corrugated pipes
- -Cable protection for: TV, telephone, glass fiber, electricity, IT and computer
Technical data
parameter | UC 330 AC / 123-128 |
max. pipe diameter (outer diameter) in mm | 330 |
min. pipe diameter (inner diameter) in mm | 50 |
connection power in kw | Drive Power: 2 x 18.2 | air cooling: up to 48 | vacuum forming: up to 40 |
amount of mould blocks | 123-128 |
mould block chain in total (mm) | 12496.8 - 13004.8 |
mould blocks in middle channel (mm) | 5580 |
max. PVC output (KG) | 1300 |
max. HDPE output (kg/h) | 1100 |
max. speed (m/min) | 40 |
length (mm) | 10500 |
width (mm) | 2450 |
height (mm) | 2572 |
weight (kg) | 19000 |
plastics
- -Polyolefines (HDPE, PP, PA)
- -PVC
- -Special plastics in single and double walled design
