- -open design
- -process controlled direct water cooling of mould blocks
- -high outputs
- -multi zone vacuum technology
- -quick pneumatic opening of center channel via spindles
- -corrugator with zoom technology
› weight optimized mould sizes

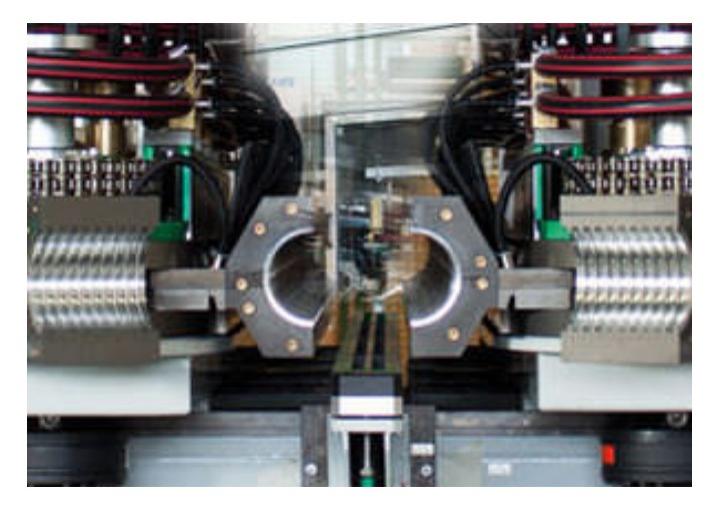

› short die lengths- -mould blocks made of special aluminium alloy
- -hard coated mould blocks
- -easy and quick mould block change
- -precise lateral and height adjustment of corrugator
- -pre-adjusted clearance system
- -central lubrication with monitoring system
- -battery buffered push off spindle system
- -PLC control system
- -touch screen technology
- -graphic visualisation of process data
- -electrical control for synchronisation with extruder
- -maintenance-free servo motors
- -telediagnostic service via internet available

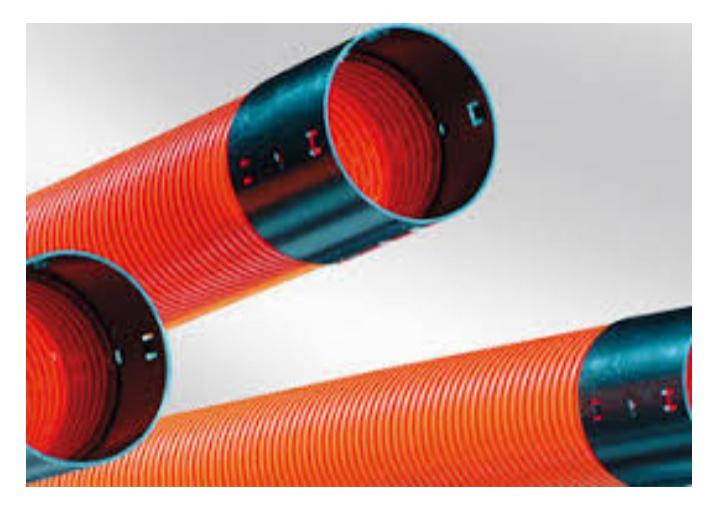

- -Cable protection for: TV, telephone, glass fiber, electricity, IT and computer
- -Protection pipes for district heating systems
- -Technical corrugated pipes
- -Drainage pipes for fields, streets, squares, buildings and any other corrugated products

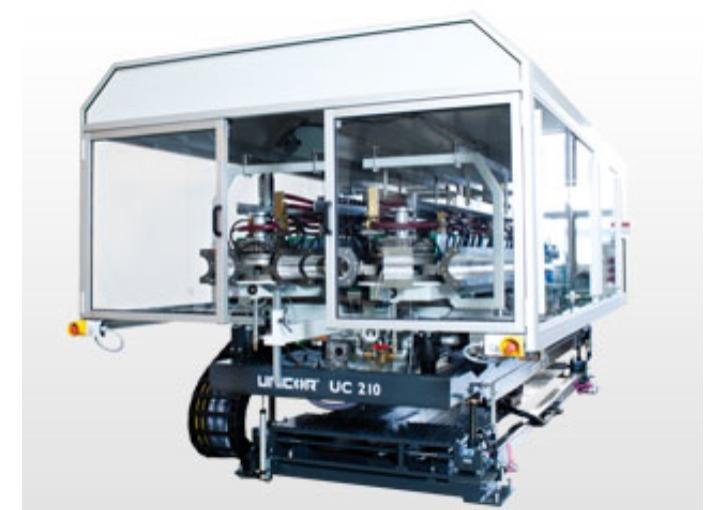

Technical data
parameter | UC 210/36 iV | UC 210/48 iV |
max. pipe diameter (outer diameter) in mm | 200 | 200 |
min. pipe diameter (inner diameter) in mm | 32 | 32 |
connection power in kw | 20 | 20 |
amount of mould blocks | 36 | 48 |
mould block chain in total (mm) | 4.750 | 6.333 |
mould blocks in middle channel (mm) | 1.758 | 2.550 |
max. PVC output (KG) | 700 | 900 |
max. HDPE output (kg/h) | 630 | 800 |
max. speed (m/min) | 35 | 35 |
length (mm) | 4.065 | 5.430 |
width (mm) | 2.100 | 2.240 |
height (mm) | 2.050 | 2.050 |
weight (kg) | 4.800 | 5.700 |
plastics
- -Polyolefines
- -Polyamides
- -PVC, PVDF, EVA, TFA, TPE
