- -open design
- -process controlled direct water cooling of mould blocks
- -high outputs
- -multi zone vacuum technology
- -quick opening of center channel via spindles
- -corrugator with zoom technology:
› weight optimized mould sizes
› short die lengths- -mould blocks compatible to UC 1200
- -mould blocks made of special aluminium alloy
- -easy and quick mould block change
- -precise lateral and height adjustment of corrugator
- -pre-adjusted clearance system
- -central lubrication with monitoring system
- -hydraulic buffered push off cylinder system
- -PLC control system
- -touch screen technology
- -graphic visualisation of process data
- -electrical control for synchronisation with extruder
- -maintenance-free servo motors
- -telediagnostic service via internet available
- -Sewer pipes
- -Drainage pipes for fields, streets, squares, buildings
- -Conveyor corrugated pipes
- -Cable protection for TV, telephone, glass fiber, electricity, IT and computer
- -Structural and civil engineering

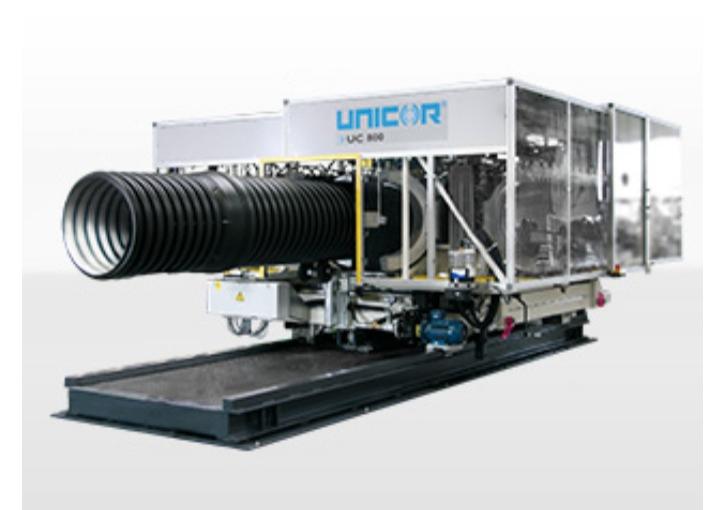

parameter | UC 800-36 V |
max. pipe diameter (outer diameter) in mm | 800 |
min. pipe diameter (inner diameter) in mm | 95 |
connection power in kw | 44 |
amount of mould blocks | 36 |
mould block chain in total (mm) | 6.333 |
mould blocks in middle channel (mm) | 1.935 |
max. PVC output (KG) | 1.150 |
max. HDPE output (kg/h) | 930 |
max. speed (m/min) | 8,9 |
length (mm) | 6.900 |
width (mm) | 4.100 |
height (mm) | 2.300 |
weight (kg) | 15.000 |
-Polyolefines
- -PVC
