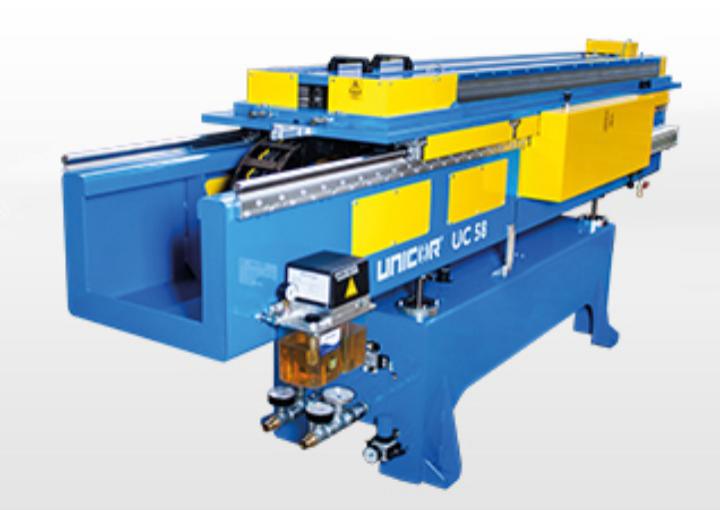

UC 58

On the UC 58 corrugators, flexible single wall corrugated pipes made of nearly all thermoplastic materials can be produced. In addition to the three standard models, UNICOR offers a corrugator with vacuum and vario technology

Features of UC 58 in detail:

  • closed design
  • water cooling
  • high outputs
  • mould blocks made of steel
  • easy and quick mould block change
  • suitable for the use of single, duo and triple mould blocks
  • precise lateral and height adjustment of corrugator
  • clearance adjustment
  • patented automatic clearance adjustment available
  • central lubrication with monitoring system
  • push off cylinder operated by air available
  • PLC control system
  • touch screen technology
  • electrical control for synchronisation with extruder
  • maintenance-free servo motor
  • telediagnostic service via internet available


Applications:

  • Cable protection for: TV, telephone, glass fiber, electricity, IT and computer
  • Automotive and airplane industry, machine and ship building
  • Healthcare
  • Vacuum cleaners
  • Washing machines, dishwashers


Materials:

  • Polyolefines
  • Polyamides
  • PVC
  • PVDF
  • EVA
  • TFA
  • TPE
Parameter:
UC 58/70
UC 58/90
UC 58/120
max. pipe diameter (outer diameter) in mm
58
58
58
min. pipe diameter (inner diameter) in mm
8
8
8
connection power in kw
4.0
5.0
8.5
amount of mould blocks
70
90
120
mould block chain in total (mm)
3.965
5.086
6.782
mould blocks in middle channel (mm)
1.376
1.936
2.785
max. PVC output (KG)
140
210
310
max. HDPE output (kg/h)
100
150
240
max. speed (m/min)
38
43
43
length (mm)
2.580
3.040
3.805
width (mm)
860
860
880
height (mm)
1.350
1.350
1.350
weight (kg)
810
1.400
2.040
