Description

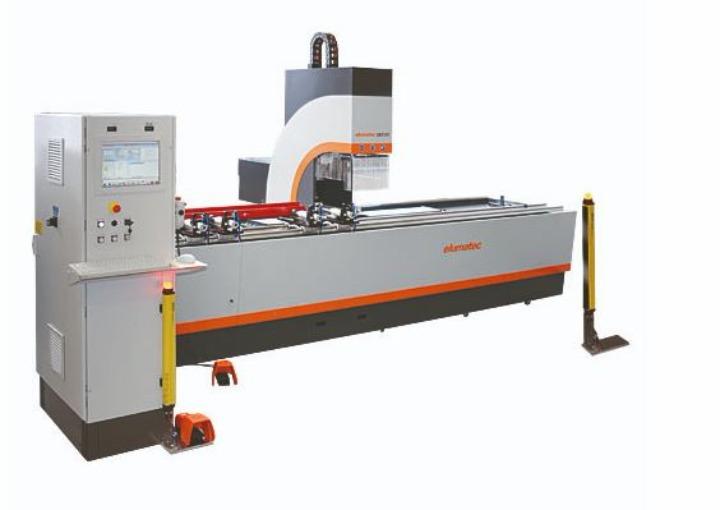

A profile machining centre offering the possibility of 5-sided profile machining for efficient production of doors with single or multiple locking or other industrial applications.

• A rotating mechanism that is integrated into the spindle makes it possible to adjust the rotating angle head to 0°/90°/180° and 270°
• This allows for the profile to be machined from the front, back and on the end with two different tools
• The Power Torque Spindle used provides increased torque in the lower spindle speed range (tapping)
• Automatic clamping adjustment is included as standard, saving precious time when profile lengths need to be changed often
• Profile machining of lengths up to 7,050 mm
• 3-axis controller
• 15" colour display, USB ports and network connection
• Windows operating system
• eluCam

Technical specifications

• X-axis traverse path 7,150 mm, Vmax. 70 m/min.
• Y-axis traverse path 350 mm, Vmax. 30 m/min.
• Z-axis traverse path 280 mm, Vmax. 30 m/min.
• Spindle speeds up to 24,000 rpm
• Spindle power output max. 7 kW, S1
• Power supply 400 V, 3~, 50 Hz, 26 A
• Compressed air supply > 7 bar
• Air consumption per minute approx. 100 l with spraying
• Length 8,450 mm, depth 3,400 mm, height 2,560 mm, weight 3,400 kg

Options

• Shuttle operation for working on two sides
• Additional automatic tool changers
• Automatic length measurement
• Spindle cooling
• Tool holders
• Collet chucks
• Collets
• Tools
• eluCad (office software package for optimized production management)
