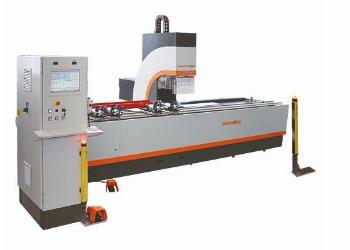

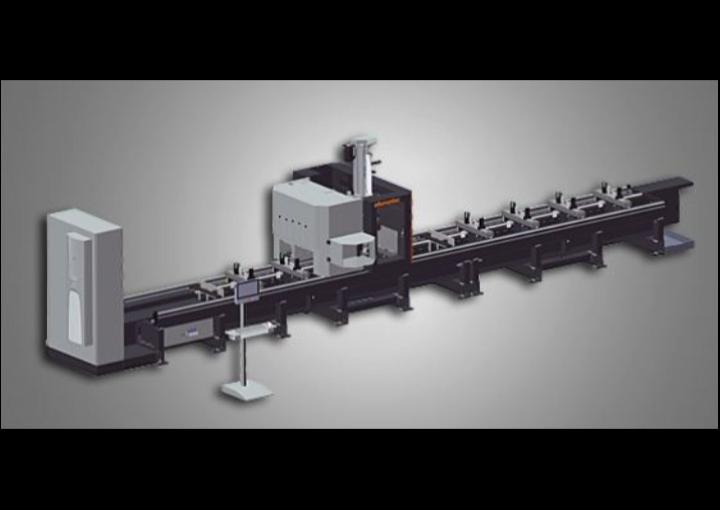

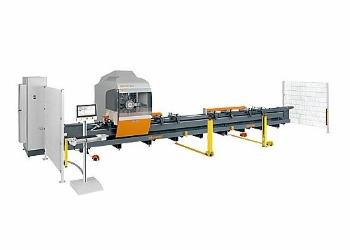

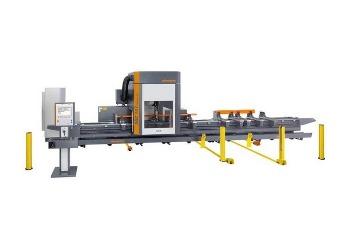

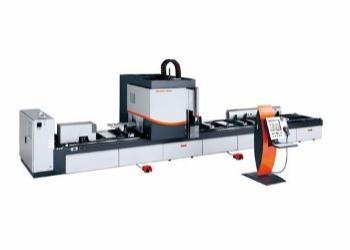

The SBZ 141 4-axis profile machining centre is the latest addition to elumatec's highly successful SBZ 14x series. The new model comes with high-performance features to round off the product family. The machine bed has once again been made more stable and given a more ergonomic design, while the autonomous clamp positioning is also new. This allows more efficient cycling of the machining steps, which accelerates pass-through times. The hood and the control panel have been redesigned to make operation more efficient.

Advantages at a glance

• 4-axis profile machining centre for economical and efficient machining of aluminium and thin-walled steel profiles
• Autonomous clamp positioning enables clamp arrangement during secondary time
• All operations, such as routing, drilling and tapping are performed while the profile bar is stationary to protect the profile surfaces

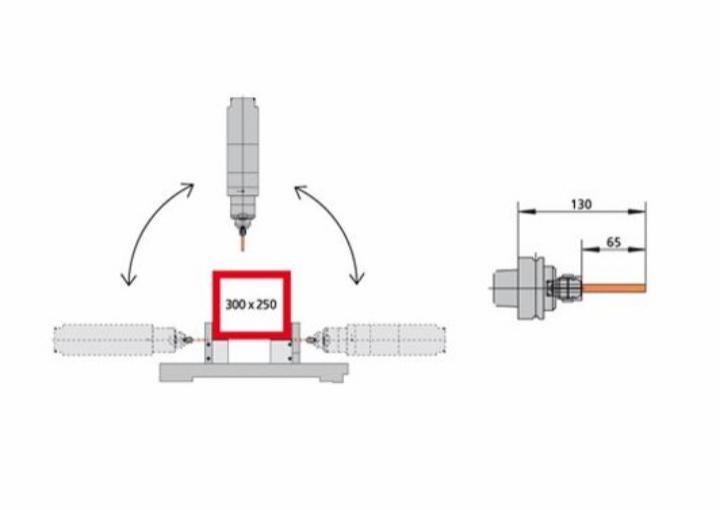

• Machining with all tools at angles continuously adjustable from 0° to 180°
• A rotating angle head with two different tools is available for double-bar and end machining (0° - 90° - 180° - 270°) (option)

Technical specifications

• X-axis traverse path 4.200 mm, 7.600 mm, 9.700 mm
• Y-axis traverse path 850 mm, Vmax. 65 m/min.
• Z-axis traverse path 650 mm, Vmax. 60 m/min.
• Pivoting angle A-axis, 0° - 180°; freely programmable in 1/10° steps
• Max. spindle speed 24,000 rpm
• Spindle power output 11 kW, S1
• Tool changer for eight tools, additional stationary tool positions on request
