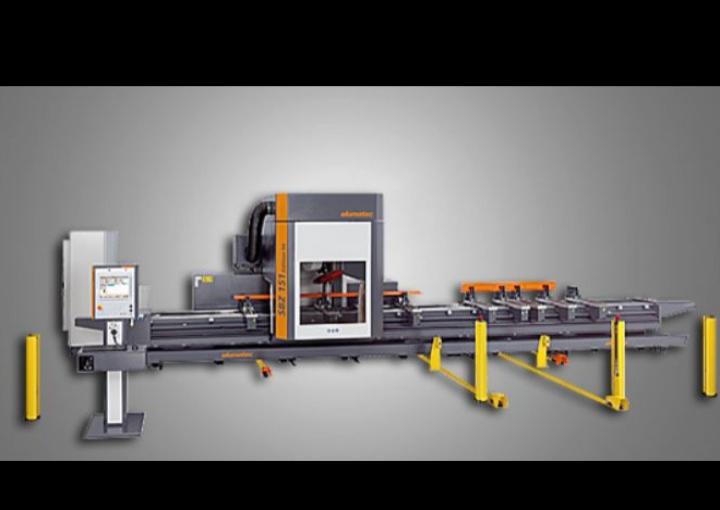

The SBZ 151 Edition 90 profile machining centre, our special anniversary model, features the proven advantages of the all-rounder in a new, contemporary design, with a new-generation control system, an ergonomic control unit and an optimised clamp concept. And as if that weren't enough, it is also eluCloud ready.

The Edition 90 gives you the following additional tool package with a connection licence:

• Tool rack set HSK63, basic, 5 chucks
• HM saw blade, teeth = 34, diameter = 180 mm, teeth width 3.5 m
• Mount HSK-F63 d20 for saw blade D = 180 mm
• HM cutter set for SBZ 150/151 aluminium
• SBZ 151 connection licence to eluCad

Advantages at a glance

• Autonomous clamp positioning with absolute measurement system
• Short tool changing times thanks to on-board tool changers
• Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives
• The absolute rotary encoder system means no axis homing is required
• Processing on a stationary bar to protect the material surface
• Certified, drive-integrated safety functions
• 5-axis CNC control for 3D machining, notching and cutting
• Operating panel with Windows operating system and large 15" flat screen display
• Connections: 1 x USB, network with RJ45 10/100 MBit
• Allows secure programming via eluCad or via DIN ISO code
• Remote maintenance via TCP/IP using existing Internet connection
• Dual clamping system

The new clamp concept

• The new clamp concept enables readjustment of the clamp width without requiring tools.
• 2 Clamp holders can be pulled out as desired for tall profi les.
• 3 The magnetic clamp blocks allow quick changeover to different profi le cross-sections.

Technical specifications

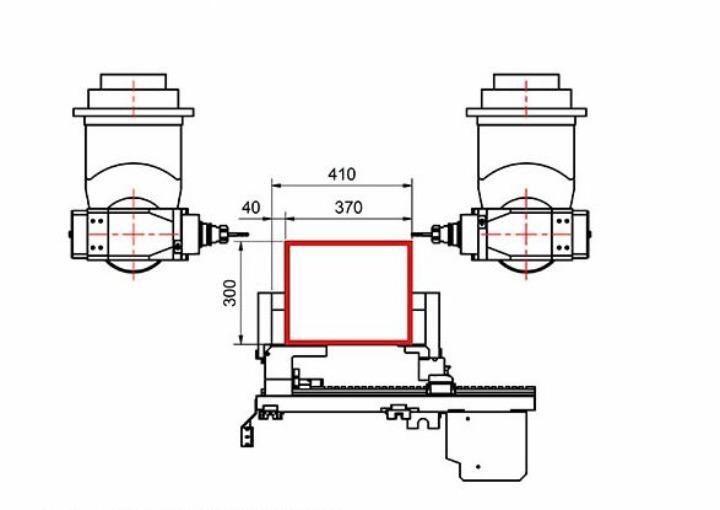

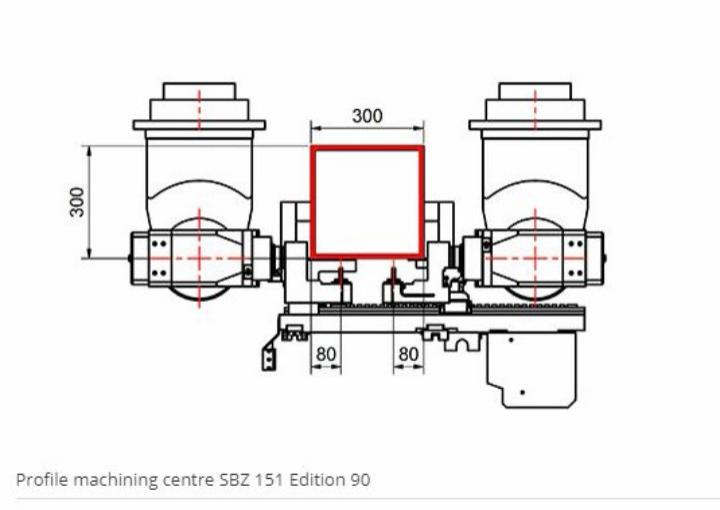

Travelling ranges and machining areas:

• X-axis [mm]: up to 6.000 / 7.300 / 9.000 / 10.300 / 12.000 / 13.300 / 15.000 / 16.300
• Y-axis [mm]: up to 1.150
• Z-axis [mm]: up to 715
• A-axis pivoting range: -110° - +110°
• C-axis pivoting angle: -182° - +182°

Rates of travel:

• X/Y/Z-axis [m/min]: 60/40/40
• A/C-axis [°/sec.]: 175/175

Router spindle:

• Speed [1/min]: up to 24,000
• Power output [kW]: 20, S1
• Tool holder: HSK-F63

Tool changing system:

• 21 tool positions: 13 standard tools, 7 special tools up to 180 mm diameter and 1 saw blade up to D = 500 mm
• Tool length: max. 180 mm (tool + holder)
