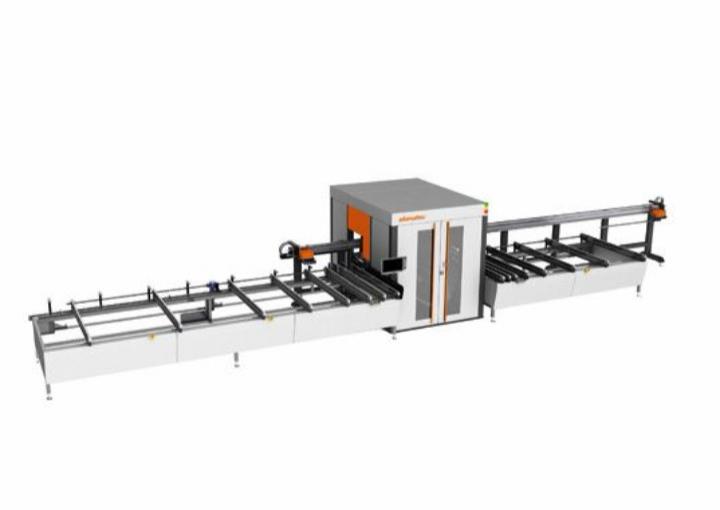

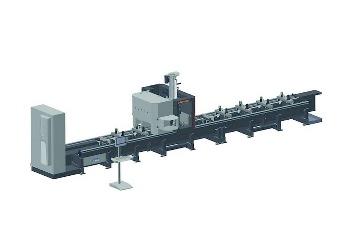

The ideal combination of automatic saw and downstream centre with full automation for weld-ready profile bars.

PVC length cutting, PVC machining with or without reinforcement steel and reinforcement screw placement as well as with or without transom notches, even all the way weld-ready profile bars

• Fast, efficient and flexible machining with the highest quality
• A powerful saw with a 4 kW motor for fast and sure cuts at up to 22.5°
• Designed as a ring module with a flexible rotation angle that can deal with all machining positions and all requirements
• Optimised for special applications
• Optional notching module available with up to four tool positions
• Industrial PC with Windows operating system
• With up to nine frequency-controlled processing motors

Technical specifications

• Can be loaded with up to ten profiles
• Lifting function for cycling the empty compartments
• Continuously adjustable pivoting range with servo drive from -22.5° to +22.5°
• Large saw blade with a diameter of 550 mm
• Powerful 4 kW saw motor
• Pneumatic saw feed
• Part lengths 400 - 4000 mm
• Drilling unit with gear unit delivers 1.2 kW
• Routing units with up to 20,000 rpm +22.5°
• Powerful reinforcement screwdriver units with a standard bit holder
• Outfeed for parts via discharge table

Options

• Hydro-pneumatic saw feed
• Barcode scanner
• Label printer
• Gasket downholder for precision gasket cutting
• High fences for precision cuts on high profiles
• Outfeed for parts using a belt conveyor, plus lifting function for outfeed of the finished profiles with no impact on the automatic process.

Notching module options

• Frequency-controlled router spindle with up to 8000 rpm.
• HSK-F63 standard tool holder
• Tool diameters up to 200 mm
• Automatic tool changer with up to four positions
• Modular and suitable for later upgrades
