The expandable solution for maximum capacity.

The ultimate in customisation thanks to its modular design.

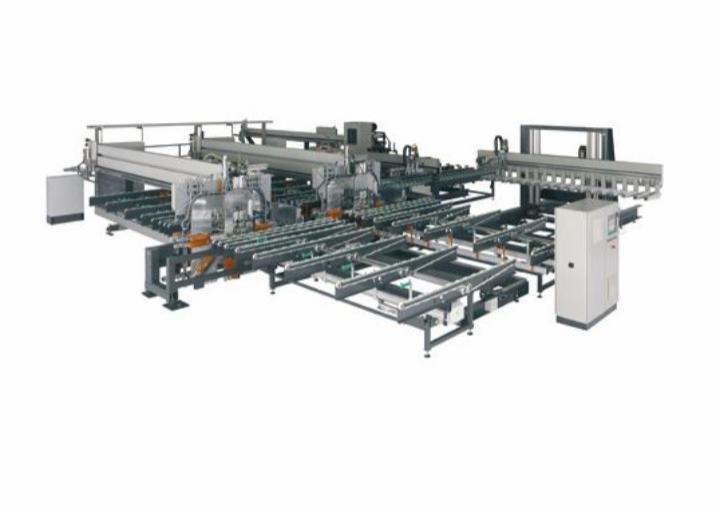

Modular, subsequent linking of an SBZ 610/03 profile machining centre with up to three SBZ 609 downstream centres for maximum performance

• Work sequence as needed, either from the left towards the right or the reverse
• Patented profile transport system
• Infeed with motorised, continuously adjustable gripper
• Lifting function for gap-free loading of the feed magazine
• Profiles are guided on rollers to ensure gentle treatment of the profile and protective film
• Simultaneous reinforcement screw driving through external screw driving stations
• Optimised length cutting with no processing waste
• Internal gripper avoids damaging the profiles
• Integrated measuring sensors for residual piece detection
• Outfeed for parts via discharge tables
• Industrial PCs with Windows operating system

Technical specifications

• Feed magazine capacity, eleven profile bars
• Profile bar lengths, 500 to 6,500 mm
• Profile cross-sections up to 130 x 205 mm W x H
• Part lengths 400 – 4,000 mm

Machining stations

• Capacity for up to 30 machining units
• Drilling unit with gear unit delivers 1.2 kW
• Pivoting reinforcement screwdriver unit

Sawing station

• Three large saw blades with a diameter of 550 mm
• Three powerful saw motors delivering 4 kW each

Optional

• Stacking module for fully automatic sorting of the parts to up to three racking trolleys at the same time
