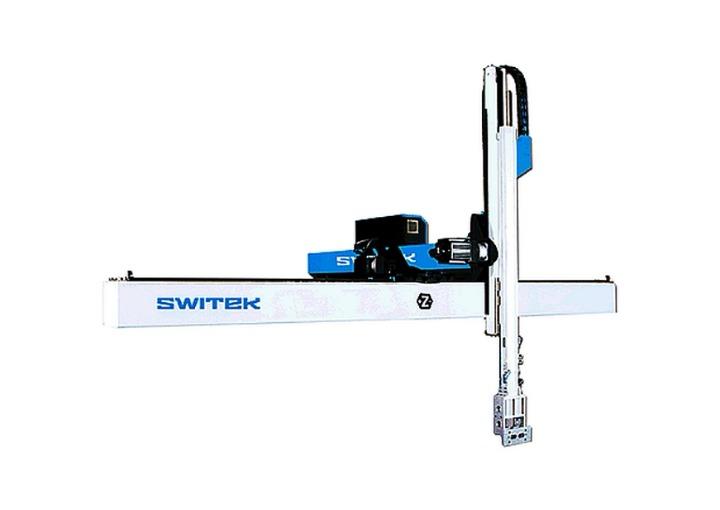

Huge size 3-axis robots SWITEK SW77 three-Axis AC Servo Driven Robots are extensively applied to horizontal plastic injection machines from 800~4000T,Take out time is 3sec, cycle time is 16sec, the maximum load of 75 kg (including fixture and products).The arm structure is telescopic arm,apply to quickly remove.Such as the bumper, door, plastic pallets, TV frame.
ALL linear movements are driven by heavy duty servo motors with cooperation of precise linear guide rails and high power V belts; Fast, silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplish smooth, stable and precise flipping motion. Vertical arm with telescopic design efficiently minimizes the cycle time and height of the robot.
All pneumatic accessories, electric accessories, and communication Protocols meet the global standards. Interface between injection molding machine and robot is designed to EUROMAP 12, EUROMAP 67 and SPI.
Plug and use industrial connectors achieve simple installation and uninstallation. Servo driven axis provides the possibility of multi points for positioning products and sprues. Multi languages displays and spared communication connections with surrounds machines offer more flexibilities to global customers.
