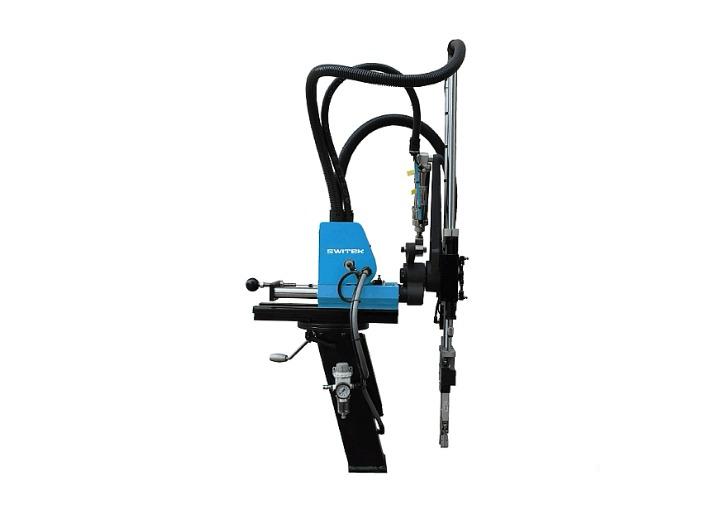

X-axis (kick-stroke)

-Heavy-duty linear rails and recirculating ball bearings.

-Swivel base to rotate the arm behind the fixed platen for mold changes and locating pin to precisely reposition arm for part removal.

Y-axis (vertical stroke)

-Adjustable stroke.

-Pneumatic shock absorbers.

-Locking cylinder to prevent the arm from drifting down into the mold in the event of air pressure loss.

Z-axis (pivot)

-Freely adjustable from 45°–95°.

-Simple changeover from rear side to operator side placement.
