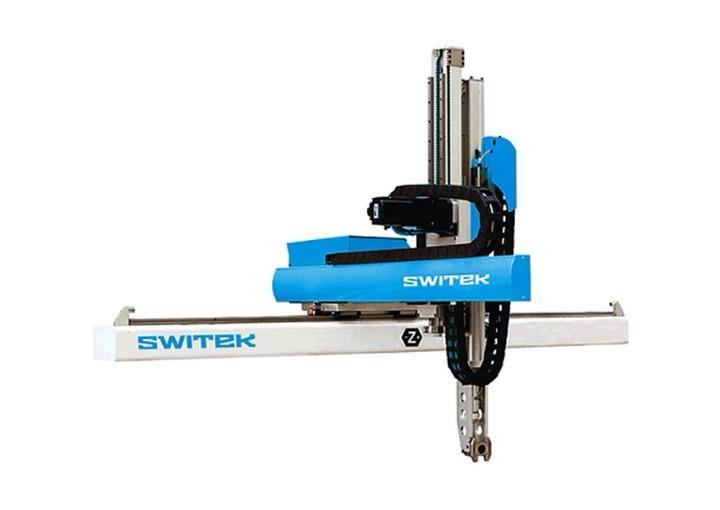

2-axis servo traverse robots
The SW52 Series robot is designed for rapid and precise removal of sprue and products from injection molding machine, Economic structure : This series of robot Y-axis and Z -axis servo motor drive , X -axis cylinder drive for 150-650T injection molding machine .
Precision
-Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast, silent, and precise.
-Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion.
-Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot.
Safety
-High efficient shock absorbers allow fast and precise pneumatic driven motion.
-Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source.
-Control board is designed to CE EMC test with short circuit and noise proof functions.
-Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions.
Standardization
-All pneumatic accessories, electric accessories, and communication Protocols meet the global standards. Interface between injection molding machine and robot is designed to EUROMAP 12, EUROMAP 67 and SPI.
