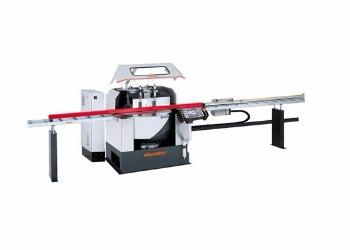

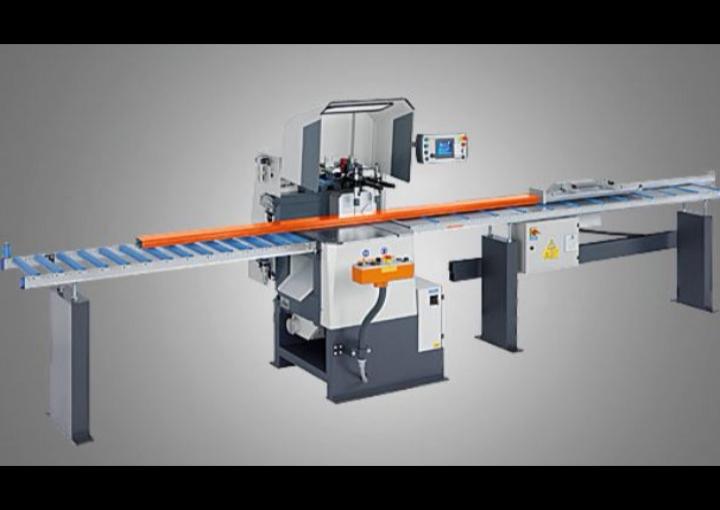

Description

• The ideal mitre saw for industrial series production
• Safety hood opens automatically
• Equipped with exhaust connectors on the workpiece back fences as standard
• Pulsed coolant system
• Profile feed from the left and material stop on the right
• Equipped with saw blade as standard

Technical specifications

• Tilting range pneumatically from 90° - 45° (optional)
• For cutting range, see cutting diagram
• Saw blade diameter 500 mm
• Saw blade speed 2,800 rpm
• Power supply 230/400 V, 3~, 50 Hz
• Power output 4 kW
• Compressed air supply 7 bar
• Air consumption per working cycle 20 l without spraying, 32 l with spraying
• Length 910 mm, depth 1,335 mm, height 1,840 mm, weight 580 kg

Options

• Hydro-pneumatic saw feed

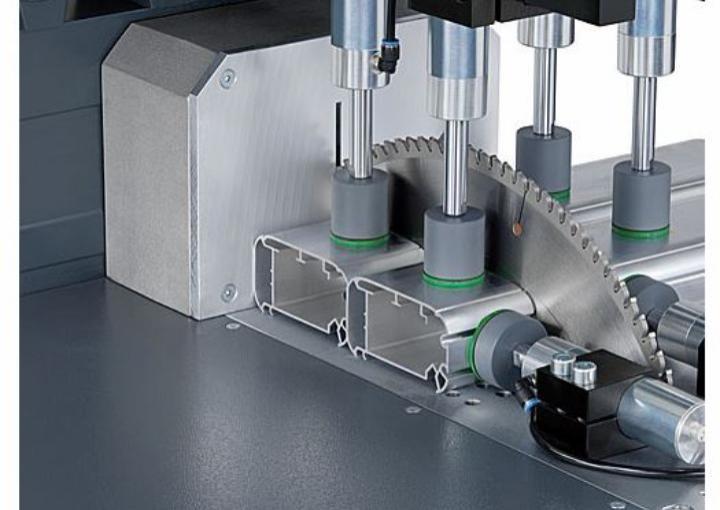

• Horizontal material clamping units
• Extraction system
• Length stop and measuring systems
• Intermediate angle setting by hand wheel and digital display E 111 (not for MGS 142/31)
• Roller conveyors
• Saw blades
• High performance cutting fluid
• Motor with 5.5 kW power output

Mitre saw MGS 142/21

See MGS 142 /11, however:

• Profile feed from the right and stop on the left

Mitre saw MGS 142/31

See MGS 142/21, however:

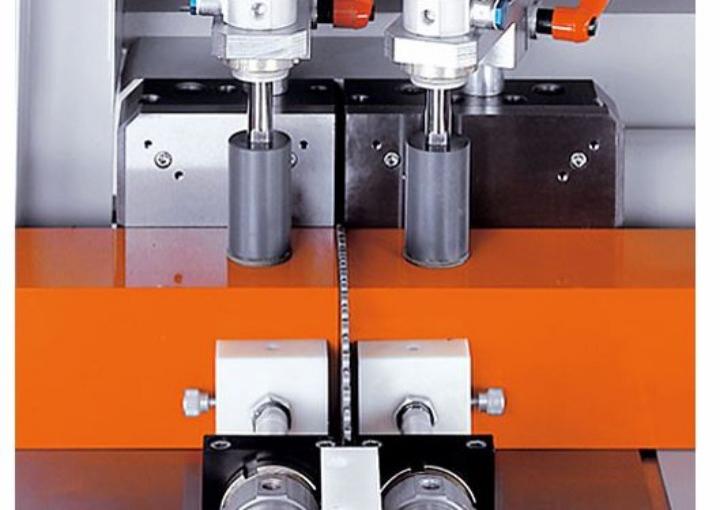

• With kerf spreading to achieve the very best cutting quality. No re-cutting by the saw blade
• Tilting range, fixed at 90°
• Length 910 mm, depth 1,335 mm, height 1,840 mm, weight 580 kg
