This is how it works

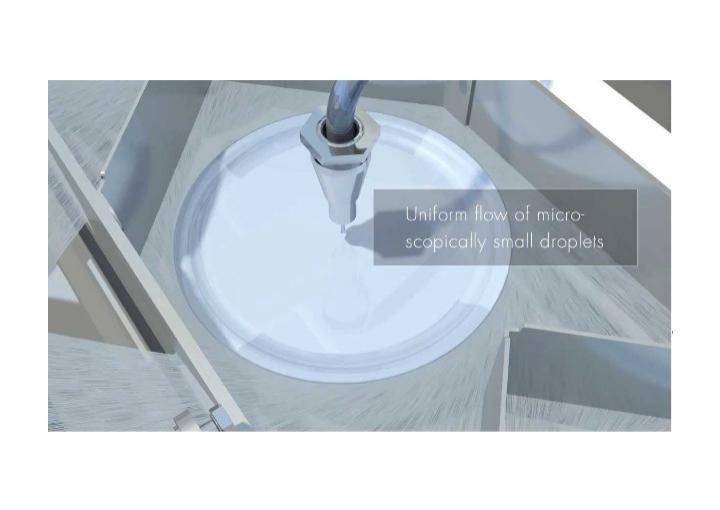

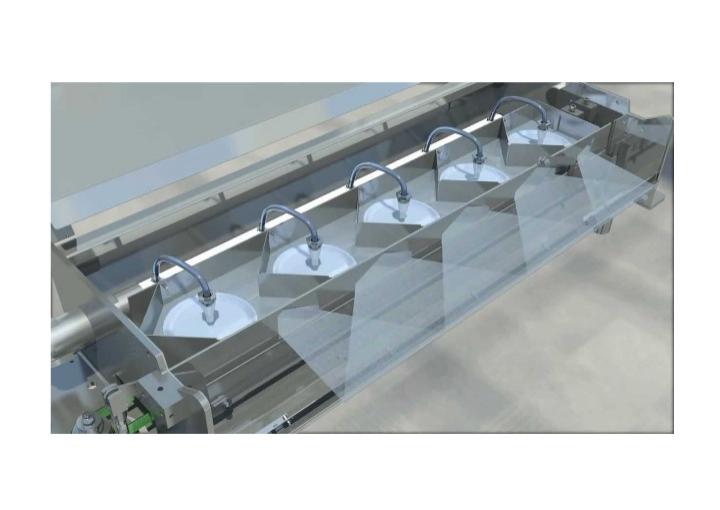

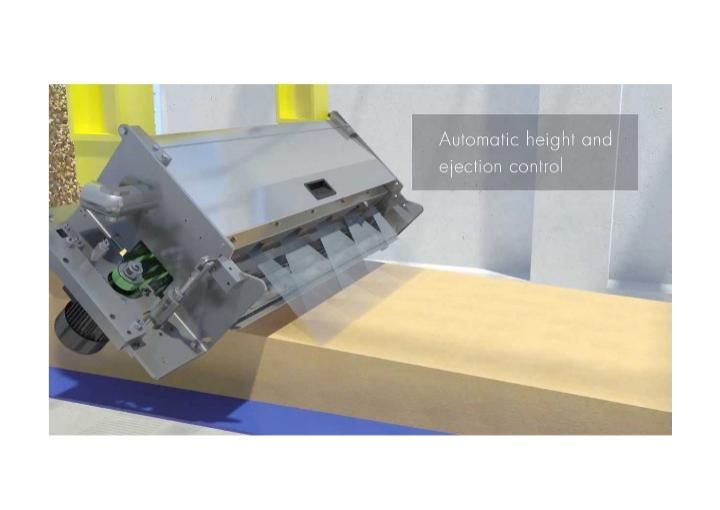

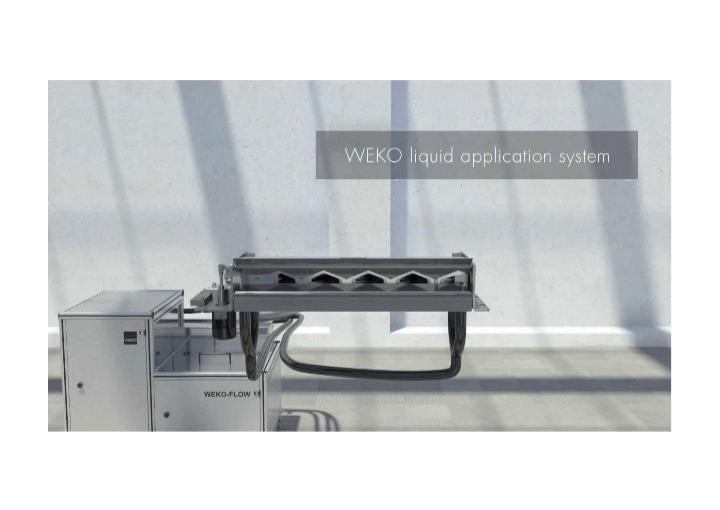

The WEKO-FLOW Liquid Supply Unit provides the WEKO-SIGMA rotor carrier with the desired amount of liquid and controls the entire system. The frequency-controlled rotary pump transports the liquid from the storage tank to the rotor carrier. Through the rapid rotation of spray disks, the so-called rotors, a defined stream of micro-droplets is formed; via adjustable sliders they create a uniform liquid application. The application volume is thereby adapted to the machine speed. Liquid not sprayed can be returned to the storage tank of the Supply Unit.

Convincing in handling and maintenance

The modular units WEKO-FLOW and WEKO-SIGMA were tuned to the use of a variety of fluids. Retooling and cleaning times, especially in regard to the use of chemicals, are therefore minimal. All components can be handled conveniently during operation and maintenance and feature a long service life.

Your benefits

• Precisely defined application quantity, reproducible at any time
• Automatic speed adaptation
• Low energy consumption
• User-friendly through removable components
• Drive components and bearings separated from the spray area
• Short retooling times
• Low maintenance
• Very long service life
• Compact space-saving design
• Modular adjustment
• User-friendly touchpanel
• Optimal access
• Programmable rinsing and pump-out of residual liquid

  Applications

  › Composites
  › Film
  › Wood fibreboard
  › Paper processing
  › Textiles and nonwovens
  › Gravure and flexo printing
  › Tissue
